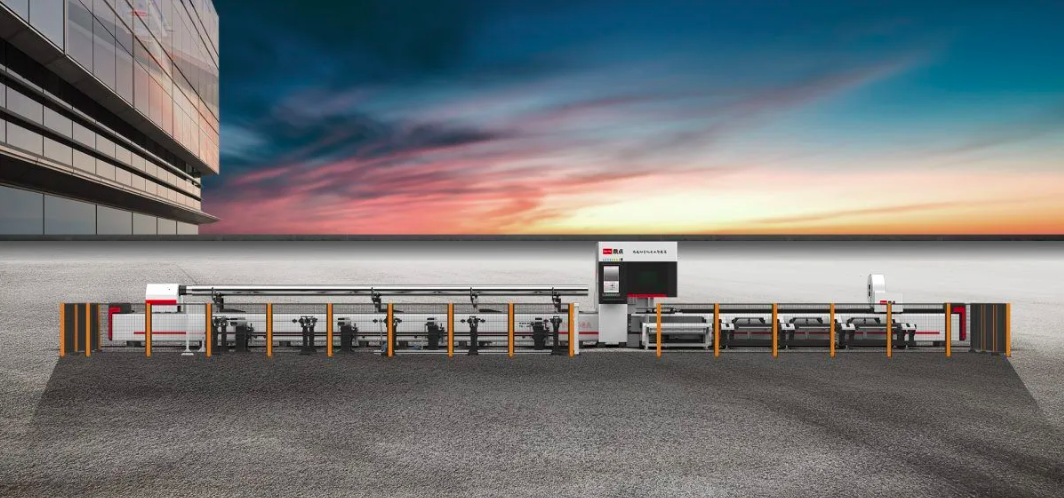

G Series Heavy Duty Laser Pipe Cutter LT-12035GA, can cut 20-350mm diameter square pipe, round pipe, rectangular pipe, oval pipe, elliptic pipe, channel steel, H steel, angle iron, and other arbitrary shapes of all kinds of metal pipe, suitable for new energy, heavy machinery, construction steel, automobile manufacturing, steel structure and other heavy pipe industry.
- Acme laser original static cutting : By adding the Y-axis, it realizes that the pipe does not move, and the small and fast cutting head reciprocates along the pipe cutting path, making the processing more accurate and faster!

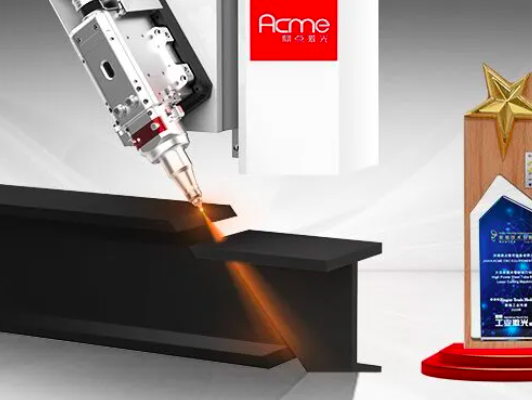

This makes machining more accurate and faster! Heavy-duty but lightweight movement reduces energy consumption by 60% for the same pipe. - Pipe Bevel Cutting Technology : Winner of 2023 Laser Processing Industry – Ringier Technology Innovation Award, ±45° Bevel Cutting
V-bevel, Y-bevel, X-bevel, K-bevel, and gradient cutting are all available. - Support whole cut / zero end material cutting : Three chucks can be moved to cut long pipes (6/9/12/15mm or customized lengths) in one piece and with zero tails. The last cut can be graphic process to improve tube utilization and reduce tube cost.

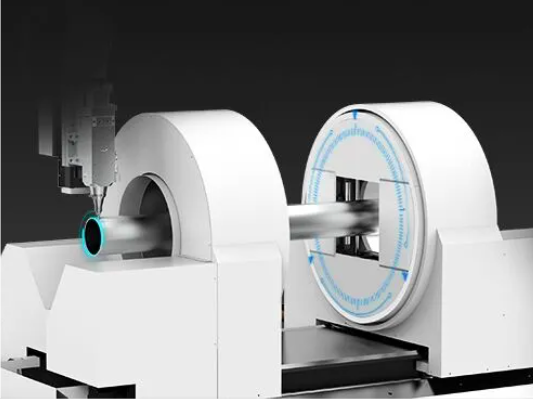

- Full-stroke square bore pneumatic chucks : Unique in the industry, no need to replace jaws; eight-cylinder clamping, twice the clamping force of ordinary chucks. Precision grinding gear drive, stronger power; square hole design, pipe through rate is strong
Batch processing of all metal pipes with diameters ranging from 10-350mm. - Intelligent process : Support flying cutting, frog jumping, guide line, cooling point, penetration hole, knife cell sorting, automatic sample arrangement. Weld compensation, analog cutting, micro-connection, pre-piercing, automatic focusing, one-key cut-off and other processes.

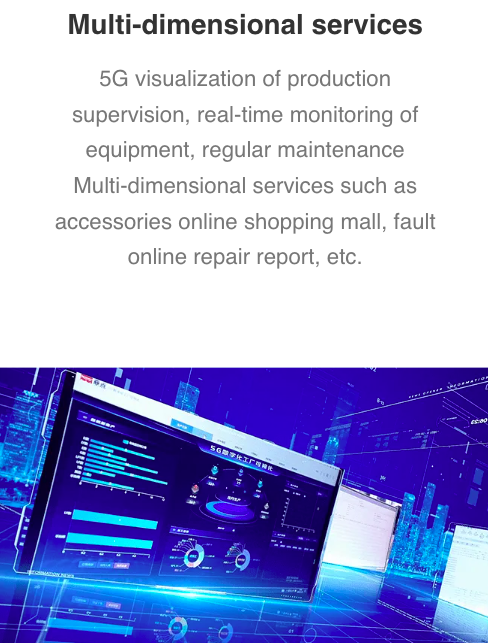

- Multi-dimensional services : 5G visualization of production supervision, real-time monitoring of equipment, regular maintenance

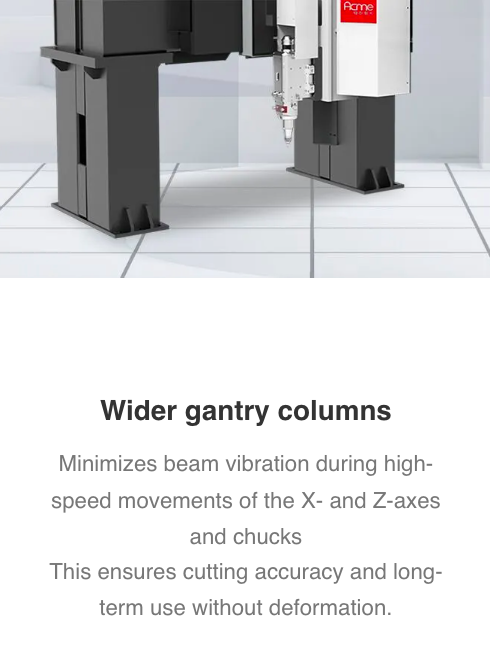

Multi-dimensional services such as accessories online shopping mall, fault online repair report, etc. - Wider gantry columns : Minimizes beam vibration during high-speed movements of the X- and Z-axes and chucks

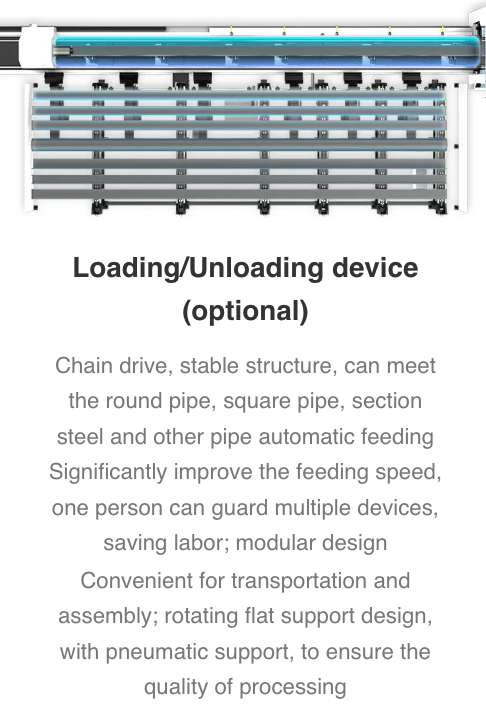

This ensures cutting accuracy and long-term use without deformation. - Loading/Unloading device (optional) : Chain drive, stable structure, can meet the round pipe, square pipe, section steel and other pipe automatic feeding. Significantly improve the feeding speed, one person can guard multiple devices, saving labor; modular design
Convenient for transportation and assembly; rotating flat support design, with pneumatic support, to ensure the quality of processing
